StackShot 3X Pan-Tilt Field Kit

As low as $1,899.00

In stock

SKU PAN_TLT_FLDK_BNDL

The Pan / Tilt Field Kit includes all of the products you will need to take your StackShot 3X controller and Pan / Tilt System into the field. This includes a battery and the controller carrier kit. The kit includes the following:

  • StackShot 3X Controller
  • Cognisys Rotary Tables (2)
  • 0.25m - Locking Motor Cables (2)
  • 2A AC adapter
  • Pan Tilt Bracket set (including hardware and Allen key)
  • Neoprene Bags for transport and storage (2)
  • 3/8"-16 to 1/4"-20 threaded adapters (4)
  • Li-Ion Battery Kit - 5200mAHr Version
  • Controller Carrier Kit

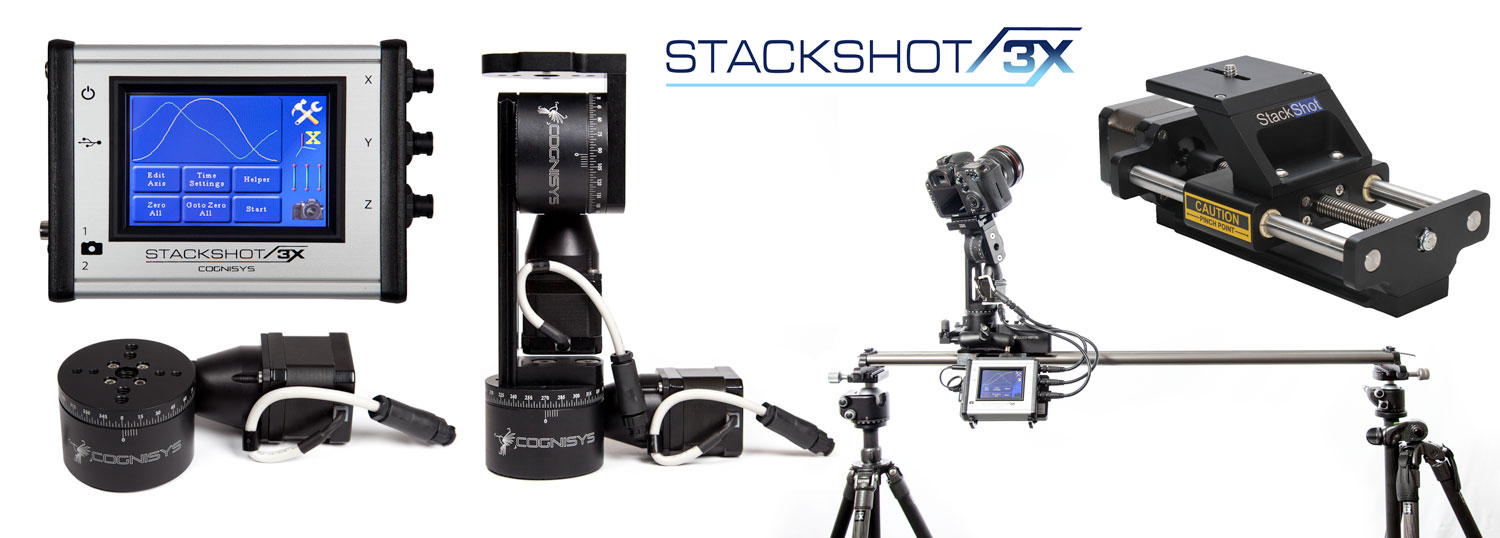

Controller Carrier Kit can be attached to the tilt upright but is shown attached to a Wimberley P-20 Arca Plate mounted to the bottom of the rotary table.

Arca Plates, Clamps, and Tripod shown in image not included.

Customize StackShot 3X Pan-Tilt Field Kit

* Required Fields

StackShot 3X Pan-Tilt Field Kit

In stock

$1,899.00

- +
Reviews
Write Your Own Review
You're reviewing:StackShot 3X Pan-Tilt Field Kit
Your Rating
Specs
Specifications MIN NOM MAX UNITS
Input Voltage 12 12 24 Vdc
Input Current (12Vdc in) - 150 6000 mAdc
Input Current–Power-saving modes active - 50 - mAdc
Shutter Output Current Sink - - 1 Adc
Operating Temperature -20 25 70 C
-4 77 158 F

• ARM Processor
• 3.5” color TFT LCD capacitive touch screen display – great in direct sunlight!
• Dual shutter outputs, one which includes half-press/full-press functionality
• Remote trigger input
• All outputs are open drain (Can be used for Flash Trigger or Shutter Trigger)
• Simultaneous 3-axis motion control (6A DC power supply or battery required)
• USB for control and reprogramming
• Wireless connectivity: 802.11a/b/g/n 2.4GHz

Support

Firmware Updates

Stackshot 3x Firmware Updates (ZIP)
Accessories

Pan/Tilt Field Kit Accessories:
