StackShot 3X Virtual Object Creation Kit

As low as $1,269.00

In stock

SKU ST3X_VOBJ_BUNDLE

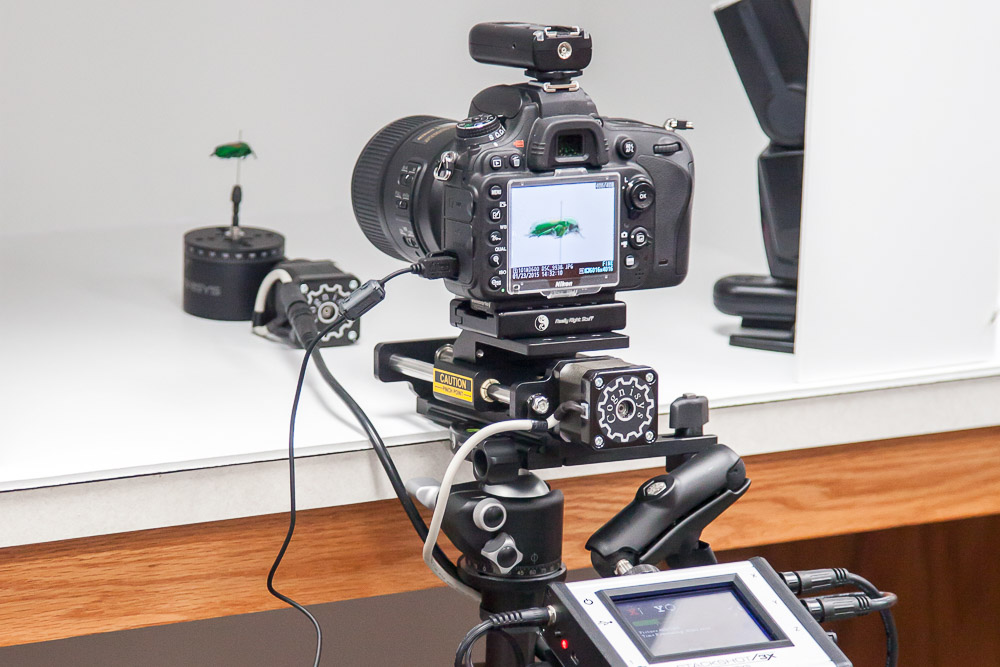

This kit includes all of the hardware you need to create 3D virtual objects. Creating virtual objects is normally a very time consuming task, The StackShot 3X Virtual Object Kit enables you to automate the process. Included is all of the hardware required to do Stack - Rotate - Stack tasks.

What's Included:
1 x  StackShot 3X Controller
1 x  StackShot Macro Rail (Choose Length)
1 x  Cognisys Rotary Table
2 x  Locking motor cable (2m)
1 x  2A AC Adapter
1 x  Neoprene Storage bag for rotary table

Customize StackShot 3X Virtual Object Creation Kit

* Required Fields

StackShot 3X Virtual Object Creation Kit

In stock

$1,269.00

- +
Features

StackShot 3X - Focus Stacking and so much more.

StackShot 3X and Pan Tilt Setup
One Controller - Many Applications

Why purchase a Giga-pixel scanner, an automated turntable, and a panoramic head for time lapse separately when you can purchase a StackShot 3X system and use the same components to achieve all of this. StackShot 3X is a modular system with incredible flexibility. It is the next generation StackShot controller featuring 2 additional stepper motor controllers to allow complete 3 axis motion control. It is equipped with a touch screen user interface with haptic feedback making number entry quick and easy. You will also find USB and Wi-Fi on the StackShot 3X to allow control with your computer. If you are interested in the differences between this controller and the original StackShot visit our comparison page. So what applications are possible with this 3 axis controller?


Controller Highlights
  • USB port for computer control and updating firmware
  • Wi-Fi (802.11 a/b/g/n) enabled for wireless connectivity to your computer or our remote
  • Controls one or two Rotary Tables, the StackShot 3X Slider, and/or the StackShot Macro Rails
  • Capacitive touch screen full color display with haptic feedback for easy control
  • All timing parameters for motion and shutter control are completely user configurable
  • Durable extruded aluminum housing
  • Adjustable motor torque - turn down the torque to save battery life or run small stepper motors
  • LCD Power Save - perfect for nighttime photography, or just to save on battery life
  • Dedicated modes for stacking, panoramas, shoot-move-shoot, and continuous motion control
  • Configurable settle time in between captures
  • Capture multiple photos at each step (exposure bracketing or mirror lockup)
  • Preview options to examine your framing and setup
  • Optional battery power for field shooting, operates at 12-24VDC
  • User presets - Save your different setups and recall them as needed
  • Change the lighting or exposure and run your last stack or motion profile with a single button press
  • Dragon Frame compatible
  • Helicon Focus and Zerene Stacker compatible (X-axis only)
  • Compatible with existing StopShot/StackShot shutter cables or any shutter cable equipped with a 3.5 mm plug

StackShot 3X

Reviews
Write Your Own Review
You're reviewing:StackShot 3X Virtual Object Creation Kit
Your Rating
Specs
Specifications MIN NOM MAX UNITS
Input Voltage 12 12 24 Vdc
Input Current (12Vdc in) - 150 6000 mAdc
Input Current–Power-saving modes active - 50 - mAdc
Shutter Output Current Sink - - 1 Adc
Operating Temperature -20 25 70 C
-4 77 158 F

• ARM Processor
• 3.5” color TFT LCD capacitive touch screen display – great in direct sunlight!
• Dual shutter outputs, one which includes half-press/full-press functionality
• Remote trigger input
• All outputs are open drain (Can be used for Flash Trigger or Shutter Trigger)
• Simultaneous 3-axis motion control (6A DC power supply or battery required)
• USB for control and reprogramming
• Wireless connectivity: 802.11a/b/g/n 2.4GHz

Support

StackShot 3X Resources

Owner's Manual

Owner's Manual (PDF)

Firmware Updates

StackShot 3X Firmware Updates (ZIP) StackShot 3X Firmware Release Notes (PDF)

3X Computer App

StackShot 3X App Downlaod (Mac) StackShot 3X App Downlaod (PC)

Computer App Notes

The StackShot 3X application is written in Java, and you will need to make certain you have Oracle's Java installed. The StackShot 3X Application will let you know if you need to update your version of Java. You can find the latest version here:

http://java.com/download
